JYQD-YL02D BLDC Motor Controller 12-36VDC 400W for Hall Sensor Motors

Name: JYQDYL02D BLDC Motor Controller 1236VDC 400W for Hall Sensor Motors
Brand: Bextremeshell
Price: 16.92 USD

Wholesale JYQD-YL02D BLDC Motor Controller 12-36VDC 400W for Hall Sensor Motors from china suppliers

Model Number : JYQD-YL02D(C737)

Place of Origin : Jiangsu, China

Brand Name : Bextremeshell

MOQ : 1

Price : $16.92-17.91

Working voltage : 12-36VDC

Rated power : 400W*2

Max power : 540W*2

Max current : 15A*2

Speed regulation : PWM/0-5V

Control algorithms : Square wave

Dimensions : 100mmx59mmx20mm

Working temp : -20℃--85℃

Copper thickness : 1 oz

Speed signal : Yes

Motor type : Hall sensor motor

PWM frequency : 1KHz-10KHz

External power : 5V (≤300mA)

Brake voltage : 0-2.5V or 0-5V

Protection features : Over-current, short circuit, over voltage, under voltage, locked rotor, over-heating

Contact Now

BLDC Motor Driver Major Parameters

JYQD-YL02D BLDC Motor Controller 12-36VDC 400W for Hall Sensor Motors

Model No.:JYQD-YL02D(C737)

Power Input：12-36VDC

Rated power：400W*2

Suitability ：Hall sensor motor

Max power：540W*2

Max curernt: 15A*2

---------------------------------------------------------------------------

Protection: Over-current, short circuit, over voltage, under voltage, locked rotor, over-heating

Control algorithms: Square wave

Dimensions：100mmx59mmx20mm

Speed Control：PWM/0-5V

Speed feedback signal output：Yes

Working temp：-20℃—85℃

BLDC Motor Driver Applications

JYQD-YL02D(C737) DC motor brushless driver board is a direct current brushless driver board. It is designed to control DC brushless motors and provide precise speed regulation range from 0 to 100%. The control algorithms of this product are based on square wave which promotes its stability and accuracy. This driver board is suitable for a wide range of applications, such as robot, electric bicycle, electric wheelchair, electric scooter and hub motor. The maximum current of this DC brushless driver board is 15 * 2 (A) and it is the ideal choice for those who needs a reliable and efficient motor driver board.

Electric skateboard

Electric scooter

Electric wheelchair

Hoverboard

Drones

Electric unicycle

Electric Moped

Electric go kart

RC car

Industrial robot

Logistics conveyor belt

Automation equipment

CNC machines

Self-propelled lawn mowers

Consumer electronics Home appliances Industrial equipment

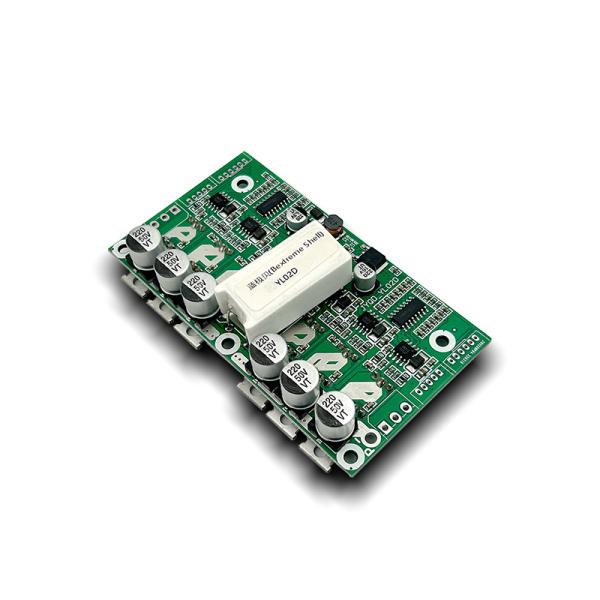

BLDC Motor Driver Appearance

BLDC motor driver selection list

JYQD-YL02D(8559) direct start version has NO LOCK function(linear speed regulation 0-5V, linear brake:0-5V)
JYQD-YL02D(457E) direct start version has NO LOCK function(linear speed regulation 0-2.5V, linear brake:0-2.5V)
JYQD-YL02D(99F2) direct start version has LOCK function(linear speed regulation 0-5V, linear brake:0-5V)
JYQD-YL02D(C737) direct start version has LOCK function(linear speed regulation 0-2.5V, linear brake:0-2.5V)

Four Protection Function
ABS function Overcurrent function No impact hard reversing Constant current protection

BLDC Motor Driver Wiring

Control port introductions

1, GND: only for control signal
2, VR: Speed regulation, (0-2.5V or 0-5V linear speed regulation). PWM frequency: 1KHz-10KHz.
3, ZF: Forward and reverse control. (5V high level or 0V low level, if you use 3.3V MCU, you need to adjust to 5V)
4, M: Speed pulse signal output.
5, EL: Brake function port, 0-2.5V or 0-5V linear brake
6, 5V: 5V power source for external control device(≤300mA)

Important reminder

1, Different hall sensored motor has different hall wires sequence, please do well-match before onload drive.
2, Add heatsink if the power more than 100W and good heat dissipation conditions for the board.

BLDC Motor Driver's size

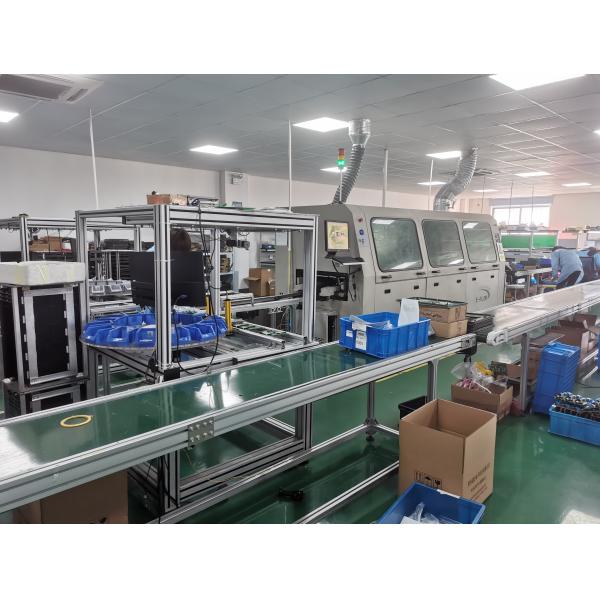

Manufacturing Technique

Packing info

The BLDC motor driver well packed in an individual antistatic bag.

FAQ

1:Whats the Lead time?

Sample:in 5 days

Mass order:in 2-3weeks

2:Whats the MOQ?

1 set for all series products

3:Whats the BLDC motor driver Warranty?

12 month from the date of delivery

4:How is the technical support?

We offer 1-1 service& technical support
